About Centile

Centile Telecom Applications is the European leading developer of unified communications and fixed-mobile convergence platforms for operators and integrators, targeting the enterprise market with value-added user-focused communications services.
Centile core convergent platform "Istra" empowers Service Providers and Mobile Operators to deliver advanced PBX and Unified Communications features to enterprises of any size, transparently, via any network and on any terminal including plain old GSM phones
Leveraging one of the earliest and most intensive R&D efforts in SIP Technology and Multi-Tenant Multi-Tier enterprise service delivery, Centile provides a robust and proven platform with cutting edge roadmap and innovation that Mobile Network Operators and Service Providers can rely upon to deliver an outstanding enterprise customer experience.

Column
width75%

See below for a list with supported features when using the Gigaset IP devices behind the Centile platform.

All tests were performed by the Gigaset pro support team, using the Centile test plan.


Feature                                       N870/N670N510 IP PRON720 IP PROMaxwell BasicMaxwell 2/3
Software release:  2.26.0240953.13.x3.13.x
Basic CallYesYesYes

Yes

Yes
Calling line (CLIP)YesYesYesYesYes
Connected line (COLP)YesYesYesYesYes
Anonymous callPlatform featurePlatform featurePlatform feature

Platform feature

Platform feature
Do Not DisturbPlatform featurePlatform featurePlatform featureYesYes
Message waitingYesYesYesYesYes
Call list/historyYesYesYesYesYes
Voice mail deposit/retrievalYesYesYesYesYes
Call waitingYesYesYesYesYes
Call Hold / ToggleYesYesYesYesYes
Call forward (CFU)Yes

Yes

YesFeature SyncFeature Sync
Call forward (CFNR)YesYesYesFeature SyncFeature Sync
Call forward (CFB)YesYesYesFeature SyncFeature Sync
Call Transfer attendedYesYesYesYesYes
Call Transfer unattendedYesYesYes--
Call Transfer blindYes--YesYes
DTMF (RFC2833)YesYesYesYesYes
Conference 3ptyYesYes-YesYes
Online DirectoryYesYesYesYesYes
BLF Busy / Idle indication---
Yes
Call pick-up direct  ( * 5 extension)YesYesYesYesYes
Call pick-up group-----
Call pick-up BLF----Yes
Auto provisioningOngoingYes

Yes

YesYes
Warning
titleOnline Directory
Online Directory is fully functional on ISTRA version 9.3. Older versions need a patch that can be installed with Centile Support Team.

Auto provisioning

The Gigaset N510/N720 and Maxwell Family is released behind the Centile platform including auto provisioning.

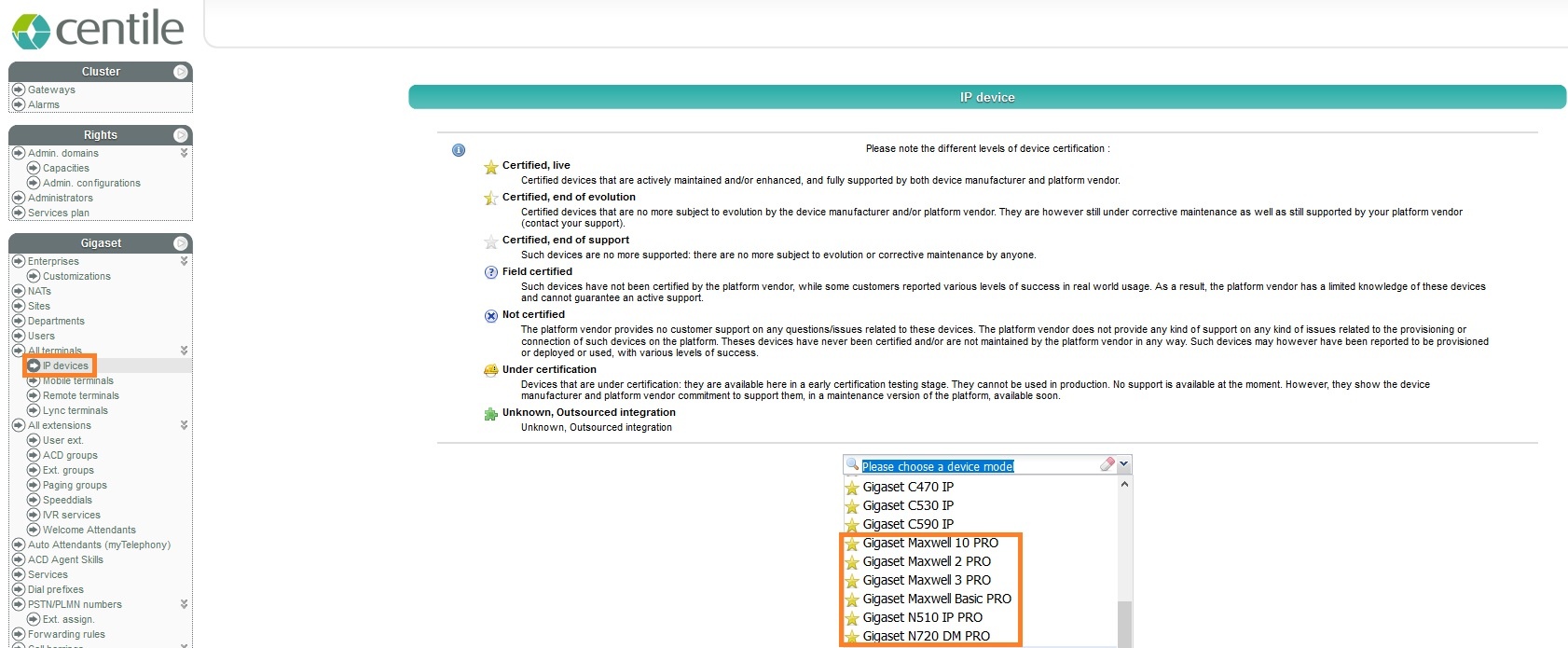

In the platform, self care web-interface go to: All terminals - IP devices - and add select the "Gigaset N510 IP PRO", "Gigaset N720 DM PRO", "Gigaset Maxwell Basic, 2, 3, 10 PRO".

Add the extensions and MAC address of the device, let the device connect to the platform to start the auto provisioning, this can be done via different options see on our wiki.

Feature codes

The following feature codes are supported by the platform.

FeaturecodeCancel
Pickup xxx*5 xxx
Do Not Disturb (DND)*8*9
Disable Call Waiting for this call*41 xxx*42 xxx
Disable Call Waiting for all calls*43*44
Hide Caller ID for this call*61 xxx*62 xxx
Hide Caller ID for all calls*63
Show Caller ID for all calls*64
Forward All Calls to xxx*2 xxx*3
Forward Call on Busy to xxx* 2 * xxx*031
Forward Call on No Answer to xxx*2# xxx*032

...
