With releasing the Integrator for Large and Enterprise solutions, we also released the Licenses described below. The license page is only available in the web-interface of the Virtual Integrator and when the N870 has the role Integrator only.

The following Licenses are available.


Virtual Integrator 1

Integrator
Virtual Integrator software License
S30852-H2716-X1

Multicell, up to 100


Single cell, up to 300

Manager
N870N670
N670
Multicell DECT manager License
S30852-H2716-X2		Multicell DECT manager License
S30852-H2716-X2
N670 DECT manager License
S30852-H2714-X2

N670 upgrade License
S30852-H2714-X1


N870 base onlyN870 base onlyN670 base only
N670 base onlyBase
Up to 60 per N870, no licenseUp to 60 per N670, no licenseNot supported
Not supported

1 Gigaset delivers the virtual integrator software, the hardware and VM-ware is not delivered by Gigaset.


The Integrator is available in 2 versions.

  1. N870 in Integrator only mode
  2. N870 Virtual Integrator software

The License is based on the N870 hardware MAC address.

How to order a license.

  1. Install the Virtual Integrator with at least one DECT manager and set this as Master DM
    When using the N870 as integrator only, an integrator license is not needed. Go to step 2.
  2. Download the license request file from the Integrator web-interface
  3. Create your order that contains:
    License request file + Virtual Integrator software License + Number of Multicell DECT managers + Number of Single cell DECT managers ( + number of N670 upgrade licenses)

How to order additional licenses.

  1. Download the license request file from the Integrator web-interface
  2. Create your order that contains:
    License request file + Number of extra Multicell DECT managers + Number of extra Single cell DECT managers ( + number of extra N670 upgrade licenses)

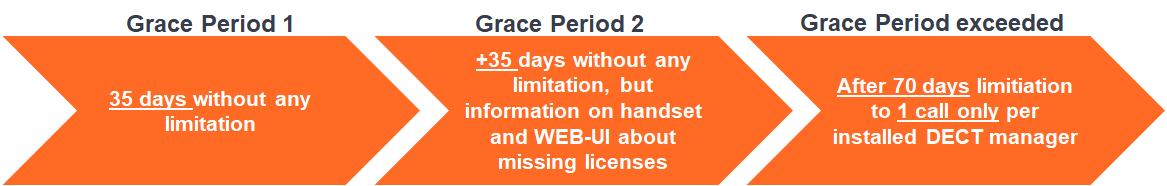

Grace period meaning and consequences

The N870 has a grace period build in.

  • An installation can be tested for 35 days without any limitation and any purchased license

a. After first startup

b. After each full factory reset

  • After 35 days the message "Check License status“ will be shown on all installed DECT handset, for additional 35 days (day 36 – 70 after first startup/factory reset)
  • Also a license error message will be shown in the N870 web-interface.
  • But, the system will stay fully functional.
  • After a total number of 70 days after first startup/factory reset the number of parallel calls will be reduced to 1 call per connected DECT manager, unless a valid license file will be uploaded into the N870


Service

If the license is not valid anymore due to:

  • Master DECT manager is broken and is replaced, therefore the license is not valid anymore.

You will have 1 Month to request a new License file, see the grace period.


Today, the license file procedure is a manual procedure. The online process is under development.
