Definition
SIP Plug & Play (PnP) provides a proprietary method to enable "Auto Provisioning". By default, the phones send SIP SUBSCRIBE messages to a multicast address. Any SIP server understanding that message may reply with a SIP NOTIFY message containing the Auto Provisioning Server URL (setting_server URL) where the phones can request their configuration file from.
Using SIP PnP provisioning does not automatically change the setting_URL. Even after you have configured the phone to fetch the configuration file through SIP PnP, the phone will still try the cloud provisioning type first. If you wish to deactivate the Redirection Service you can either change parameter setting_URL from your provisioning file to direct to your server or simply remove value "redirection:stop" from parameter provisioning_order.

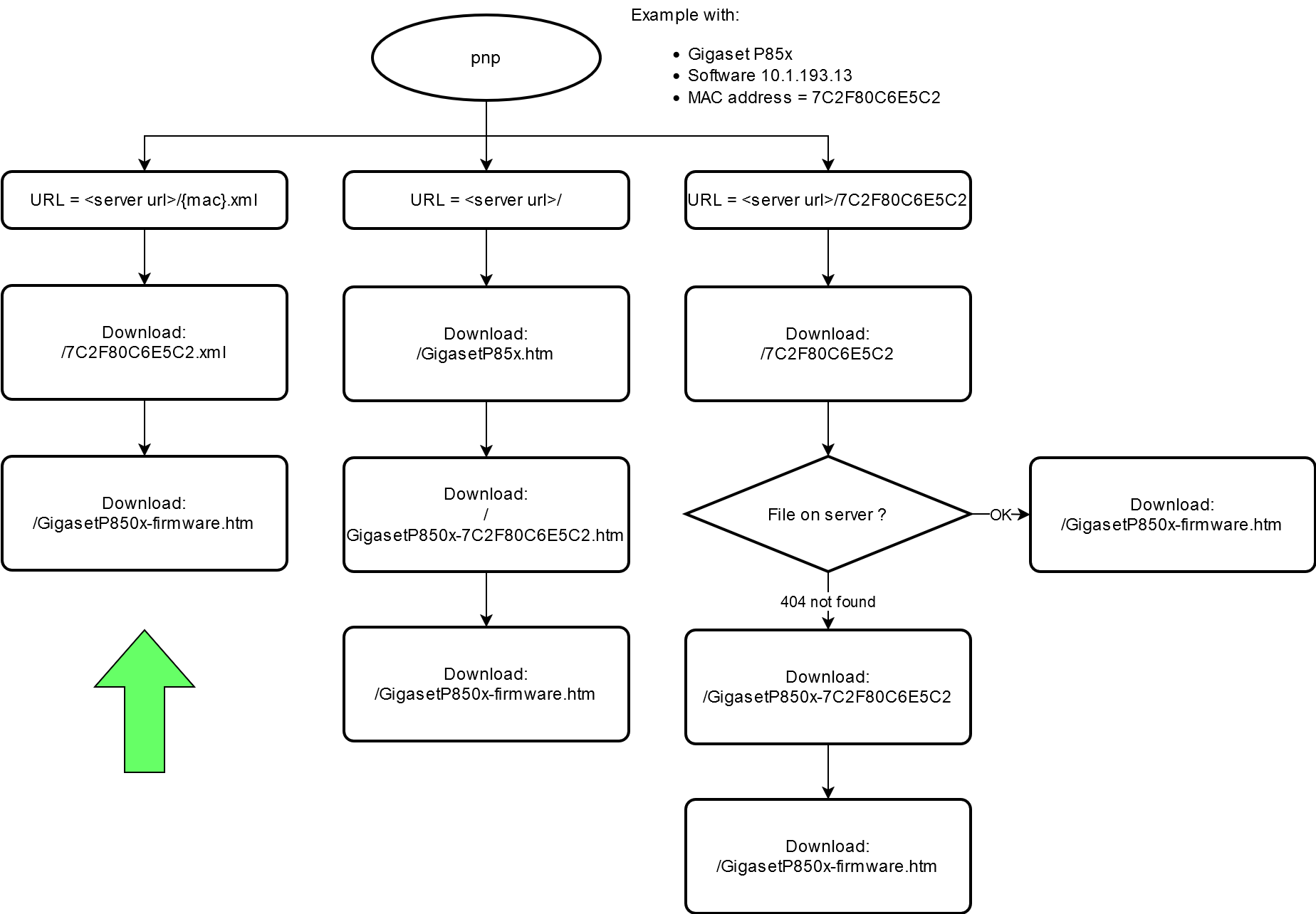

SIP flow
On boot-up, phone send a SIP SUBSCRIBE message to a multicast address:
Sent to udp:224.0.1.75:5060 at 24/12/2001 00:00:19:248 (448 bytes): SUBSCRIBE sip:MAC%3a00135E874B49@gigaset.com SIP/2.0 Via: SIP/2.0/UDP 192.168.10.67:5060;rport From: <sip:MAC%3a00135E874B49@gigaset.com>;tag=658512961 To: <sip:MAC%3a00135E874B49@gigaset.com> Call-ID: 1930770594@192.168.10.67 CSeq: 1 SUBSCRIBE Event: ua-profile;profile-type="device";vendor="OEM";model="OEM";version="7.1.19" Expires: 0 Accept: application/url Contact: <sip:192.168.10.67:5060> Content-Length: 0 |
If any SIP application within one hop range understands this message a confirmation is sent:
Received from udp:192.168.100.10:5060 at 24/12/2001 00:00:19:287 (480 bytes): SIP/2.0 200 OK Via: SIP/2.0/UDP 192.168.10.67:5060;rport=5060 Record-Route: <sip:127.0.0.1;lr;transport=tcp;route-id=fb4fb92b7775c2a7> Record-Route: <sip:192.168.100.10;lr;transport=UDP;route-id=fb4fb92b7775c2a7> Contact: <sip:192.168.100.10;transport=TCP;handler=dum> To: <sip:MAC%3a00135E874B49@gigaset.com.de>;tag=91955270 From: <sip:MAC%3a00135E874B49@gigaset.com>;tag=658512961 Call-ID: 1930770594@192.168.10.67 CSeq: 1 SUBSCRIBE Expires: 0 Content-Length: 0 |
Followed by a SIP NOTIFY message containing the Auto Provisioning URL "http://192.168.100.10/sipphone/sipphoneconfig.xml?mac={mac}":
Received from udp:192.168.100.10:5060 at 24/12/2001 00:00:19:293 (868 bytes):
NOTIFY sip:192.168.10.67:5060 SIP/2.0
Via: SIP/2.0/UDP 192.168.100.10:5060;branch=z9hG4bK-d8754z-c3ea5f0e74462613-1---d8754z-;rport
Via: SIP/2.0/TCP 127.0.0.1:5060;branch=z9hG4bK-d8754z-7ca96c30144f3e04-1---d8754z-;rport=40916
Max-Forwards: 20
Record-Route: <sip:192.168.100.10;lr;route-id=e3470eb400e9c0a4>
Record-Route: <sip:127.0.0.1;lr;transport=TCP;route-id=e3470eb400e9c0a4>
Contact: <sip:192.168.100.10;transport=TCP;handler=dum>
To: <sip:MAC%3a00135E874B49@gigaset.com>;tag=658512961
From: <sip:MAC%3a00135E874B49@gigaset.com>;tag=91955270
Call-ID: 1930770594@192.168.10.67
CSeq: 3 NOTIFY
Content-Type: application/url
Subscription-State: terminated;reason=timeout
Event: ua-profile;profile-type="device";vendor="OEM";model="OEM";version="7.1.19"
Content-Length: 59
http://192.168.100.10/sipphone/sipphoneconfig.xml?mac={mac} |
The phone accepts this message and confirms:
Sent to udp:192.168.100.10:5060 at 24/12/2001 00:00:19:315 (542 bytes): SIP/2.0 200 Ok Via: SIP/2.0/UDP 192.168.100.10:5060;branch=z9hG4bK-d8754z-c3ea5f0e74462613-1---d8754z-;rport=5060 Via: SIP/2.0/TCP 127.0.0.1:5060;branch=z9hG4bK-d8754z-7ca96c30144f3e04-1---d8754z-;rport=40916 Record-Route: <sip:192.168.100.10;lr;route-id=e3470eb400e9c0a4> Record-Route: <sip:127.0.0.1;lr;transport=TCP;route-id=e3470eb400e9c0a4> From: <sip:MAC%3a00135E874B49@gigaset.com>;tag=91955270 To: <sip:MAC%3a00135E874B49@gigaset.com>;tag=658512961 Call-ID: 1930770594@192.168.10.67 CSeq: 3 NOTIFY Content-Length: 0 |
