Introduction

The Gigaset T640 T440 offer the possibility to change the provisioning template of the Gigaset devices, that will offer you complete flexibility and customising the system conform your customer needs.

Example

On the N510, the user would like to have the MWI for missed calls disabled.

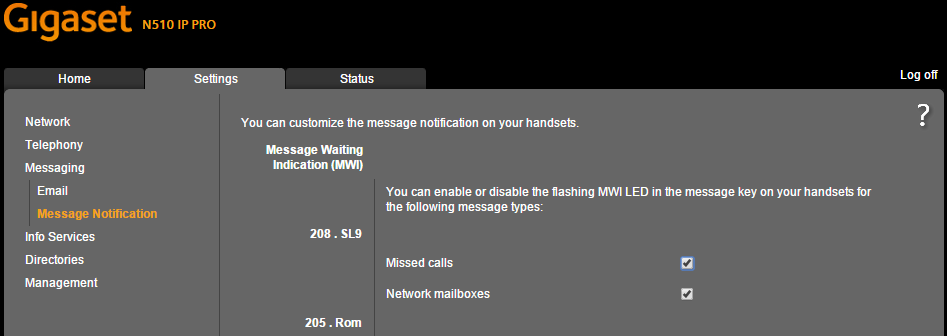

Web-interface setting N510

Missed calls should be disabled.

Gigaset PRO - Public Wiki > FAQ T640 T440 Auto provisioning - Provisioning Parameters > T640_440_Prov_par_N510_2.png

N510 Provisioning Parameter.

First you need to find the provisioning parameter in the N510, this can be done using:

Online tools
Provisioning Parameter list.

Messaging - MWI Light

BS_AE_Subscriber.stMWI[N].bShowMissedCalls (N=0-5)

0: No 1: Yes

Yes

WebUI:Settings - Messaging - MWI Light - Missed calls

For each handset you can individually set on behalf of which type of new messages the LED should flash. The message types are: Missed calls, Missed alarms, eMail, Network Mailboxes.

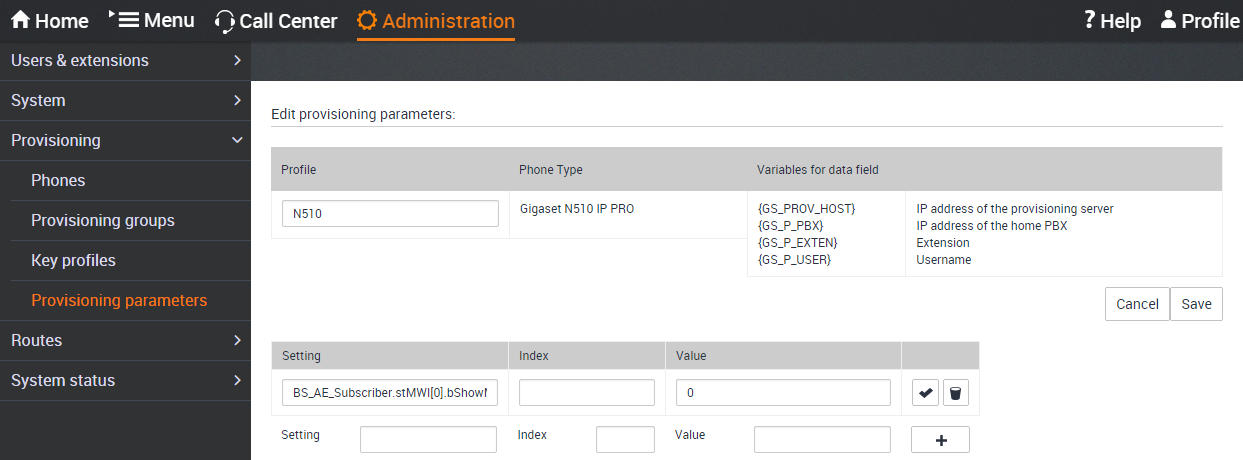

T640 T440 Provisioning Parameter

In the web-interface of the T640 T440 go to: Provisioning - Provisioning parameters

Create profile (N510)
Select Phone Type (Gigaset N510 IP PRO)
Add parameter (BS_AE_Subscriber.stMWI[0].bShowMissedCalls) and Value (0). (See below)
Press Save

Gigaset PRO - Public Wiki > FAQ T640 T440 Auto provisioning - Provisioning Parameters > T640_440_Prov_par_N510.png

T640 T440 Provisioning groups

In the web-interface of the T640 T440 go to: Provisioning - Provisioning groups

Create new group
Add the created profile (N510)

Gigaset PRO - Public Wiki > FAQ T640 T440 Auto provisioning - Provisioning Parameters > T640_440_Prov_par_N510_3.png

Add Provisioning group to user.

In the web-interface of the T640 T440 go to: User & extensions - Users and groups - Users

Edit the user setting
Select the created Provisioning group.

Gigaset PRO - Public Wiki > FAQ T640 T440 Auto provisioning - Provisioning Parameters > T640_440_Prov_par_N510_4.png

The next time the device downloads the config, the new setting will be taken.
