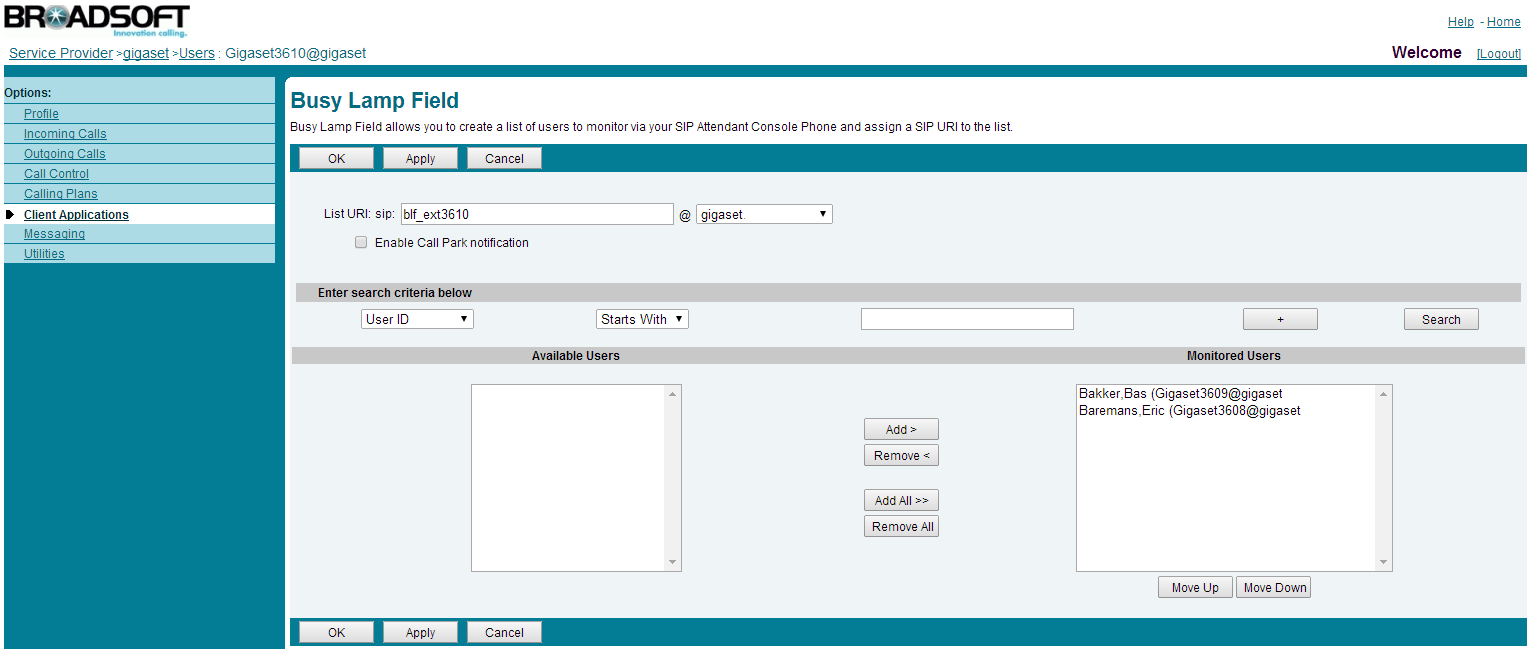

IntroductionHere you can find the description how to use the BLF keys in a Broadsoft environment. (For security reasons we removed the URL's in the example below) Broadsoft configurationIn Broadsoft management system go to: Users - Select the user - Client Applications - Busy Lamp Field - Define the URI for the BLF list, must be an unique name.
- Add the Users you would like to have under the BLF keys to the Monitored Users list
- Press OK to save the settings
Gigaset Desktop device configurationIn the web-interface of the Maxwell 10 go to: Settings - Network and Connections - Phone systems Connected with phone systems: Broadsoft When selected, also the BLF field will be visible. BLF list user = Broadsoft List URI (First Picture on this page) Gigaset BLF keysNow you have to add the BLF keys manual to the device, go to: Settings - Function Keys and add the BLF key. For the Phone number you need to enter the same naming as in the broadsoft Monitored Users list
Subscribe is only send when BLF key is configured. When no BLF key is present then device will not send subscribe. BLF keys have to be configured manually. |
Maxwell 10 auto provisioning parameters.XML syntax: <S_BLF_LIST value="blf_ext3608" class="string" /> <I_FUNCTION_KEY_TYPE_1 value="3" class="integer" /> <S_FUNCTION_KEY_NAME_1 value="3610" class="string" /> <S_FUNCTION_KEY_NUM_1 value="Gigaset3610" class="string" /> <S_DIRECTED_PICKUP_CODE_1 value="*97" class="string" /> Tag Name | Value | Meaning |
---|
S_BLF_LIST | Like configured in Broadsoft device management | Broadsoft blf list URI | I_FUNCTION_KEY_TYPE_(X) | 3 for BLF key | Type of function key | S_FUNCTION_KEY_NAME_(X) | Name of the key | Seen in the web-interface | S_FUNCTION_KEY_NUM_(X) | Like configured in Broadsoft device management | BLF phone number | S_DIRECTED_PICKUP_CODE_(X) | Broadsoft Call Pickup code | The Call Pickup code in case the key is configured as BLF key |
|
