Introduction

The PBX provides the possibility to use external plugins from your browser or mail-client for a Click2Dial function.

This is tested with Firefox (version 38.0.1) and Thunderbird.

Downloading the plugin

In the add-ons page you can search for the Telify plugin. Other phone plugins may work as well.

Current version (01.06.2015) is 1.3.4.1 .

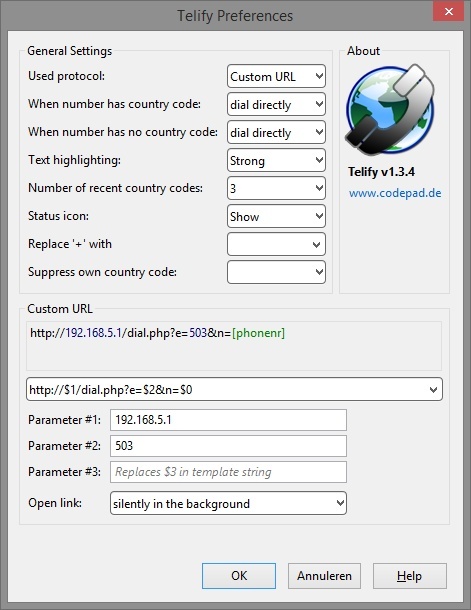

As protocol please use "Custom URL". This URL has to be defined in the field below. The parameter #1 and #2 are used.

For T440/T640 with software version 1.1.3

#1: This is the IP-address of the T440/640 PBX system

#2:This is the username, used for WebUI-Login of the PBX, e.g. demo101

For T440/T640 from software version 2.0

#1: This is the IP-address of the T440/640 PBX system

#2: This is the username:password, used for WebUI-Login of the PBX, e.g. demo101:0000

There are several fields to define the handling of phone-numbers for dialling.

When the plugin is highlighting numbers on web-pages, also leading '+' can be replaced for dialling with '00' for example.

If you are using a line access code for seizing the outside line (normally '0'), you have to add this '0' to the custom URL:

http://$1/dial.php?e=$2&n=0$0

Note: The full URL can also be used for dialling directly as link in your browser address-field.
