Protalk door intercom

Tested with:

Gigaset T300/T500 PRO: Software version 4.6.5.0

Protalk Slim IPDP 01C: VoIP version: 1.58 UDV version: 6.0

Create SIP account in Gigaset T300/T500

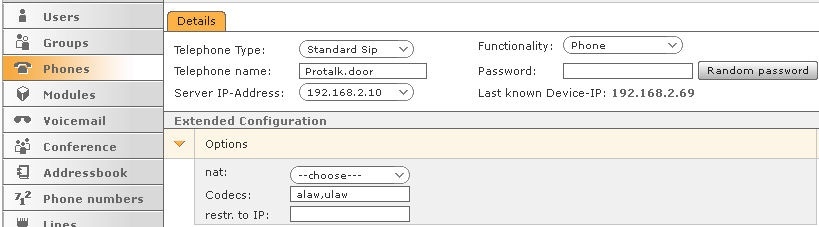

Go to: Configuration - Phones - Add additional Telephones



Use the settings like in the example above. Always use the Password generator to create a secure Password.

Configure the Protalk door intercom

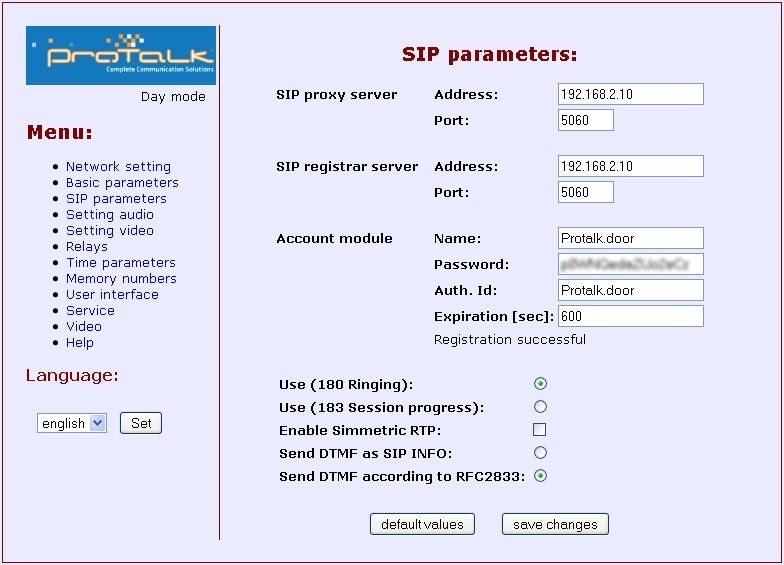

SIP proxy server and SIP registrar server = IP address of the Gigaset T300/T500.

Account module Name and Auth. ID = Telephone name in Gigaset T300/T500.

Password = Password in Gigaset T300/T500.

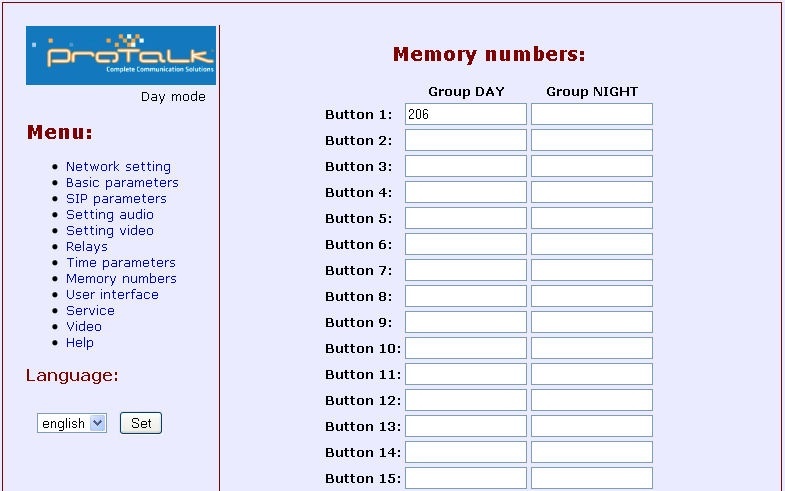

Here you can define which number is dialled when the key is pressed, in this example number: 206.

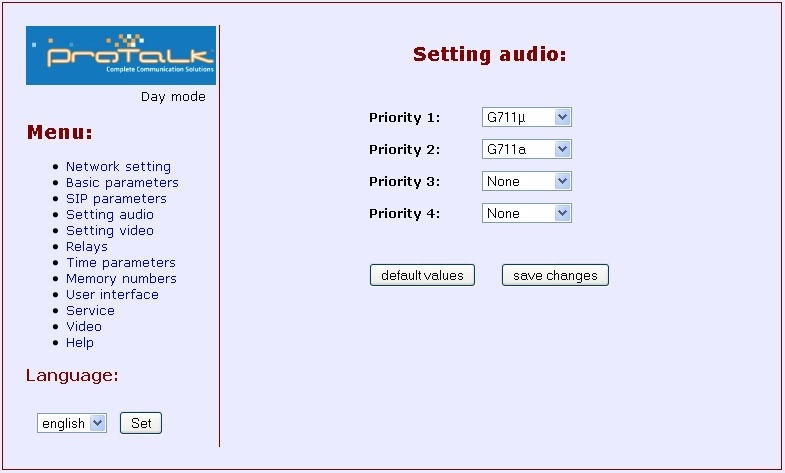

Please check if the correct codecs are enabled.

Gigaset User account.


Without a Gigaset user account, the door intercom can be used to dial an internal number. Incoming and Outgoing external calls are not possible.

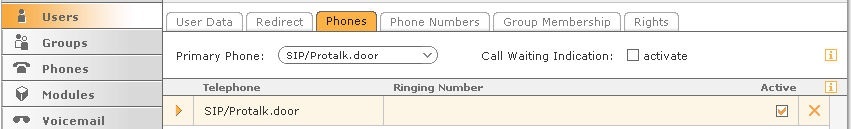

Incoming calls to the door intercom are only possible when the door intercom is assigned to a user.

In the Gigaset T300/T500 Go to: Configuration - Users and create a new user, only to be used for the door intercom (user license)



Door intercom video integration Gigaset T300/T500

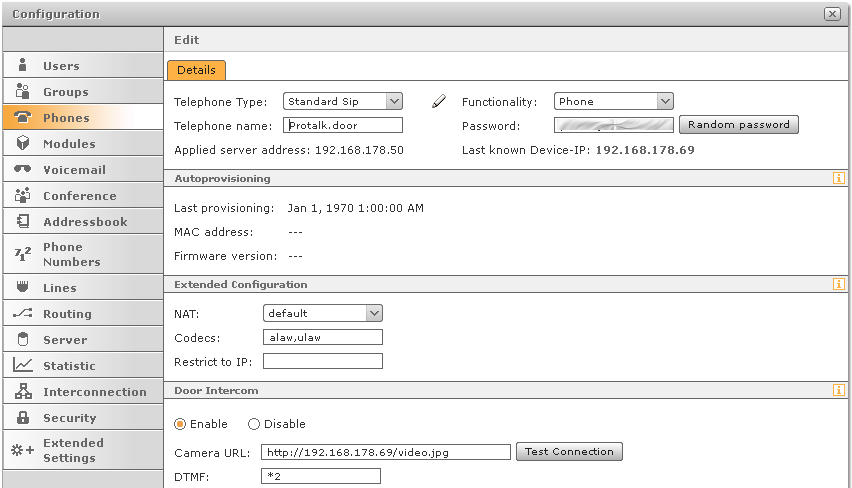

This door intercom supports video, the config below is an example how to configure the T300/T500 that will show the door intercom video when receiving a call from the device. The T300/T500 will act as a Proxy for the DE700 and DE900 devices and will provide the Devices with the Video from the door intercom. No special programming in the DE700 and 900 Devices is needed.

Door intercom video integration Gigaset DE700 and DE900.

When there is no Gigaset T300/T500 used, it is also possible to show the door intercom picture on the DE700 and DE900 devices release 02.00.04 and higher. You can use the following features:

  • Door intercom with video
  • Web camera

Door intercom with video

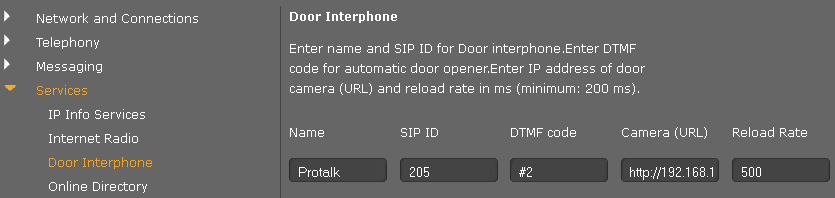

Just define the name of the device, the SIP number, DTMF door opener code, Camera URL (http://<IP address>/video.jpg) and Reload Rate.

Web camera

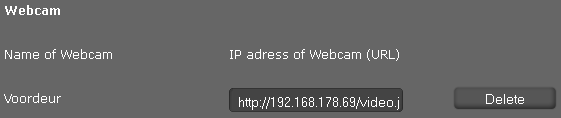

Just add a Web camera with the door intercom URL (http://<IP address>/video.jpg)

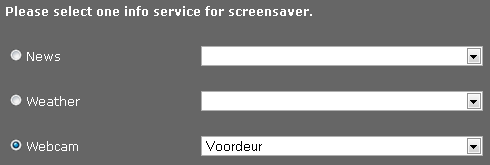

You can also use the web camera as screen-saver, under info service select the web camera you just added to the device.







ProTalk IP door entry phone with one button and a camera
