SSH access

To access Hybird 120 GE via SSH, you need to check the settings in the Hybird 120 GE first.

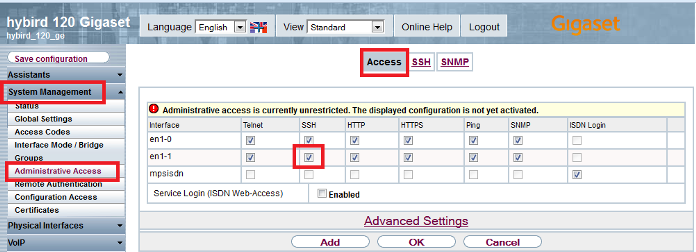

 Web page

  • Check if SSH is set for access from network.

    1. System management

    2. Administrative access

    3. access

    4. Check if SSH is set for the network.



 Network access

You have to know your Hybird IP. Default IP address of Hybird is 192.168.0.250.

  1. Use PuTTY or TeraTerm to connect Hybird 120 GE over network ( SSH port 22).

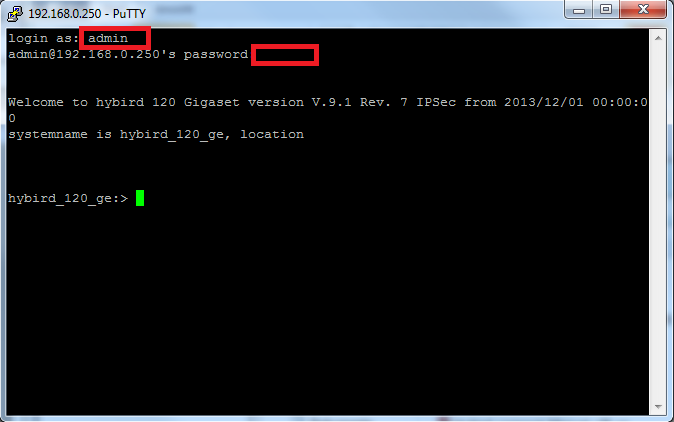

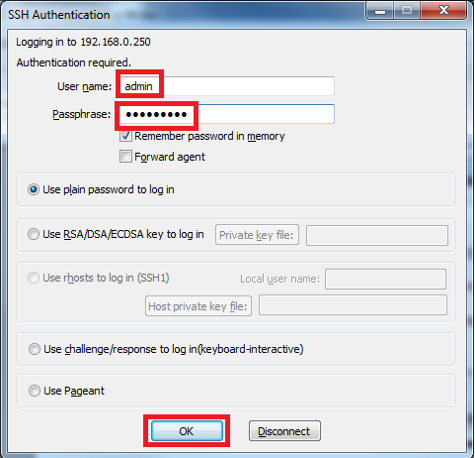

  2. Enter the admin username and password.

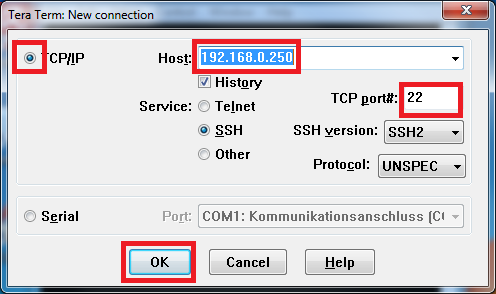

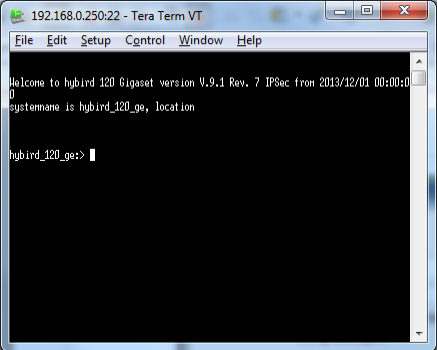

Teraterm

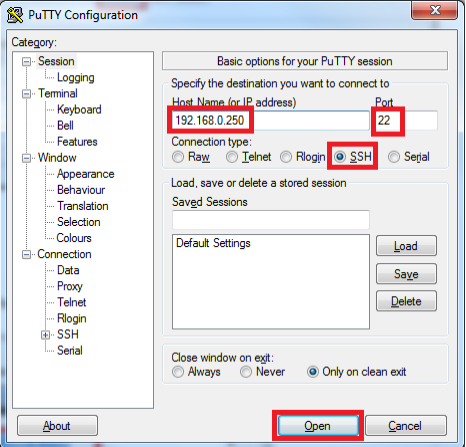

Putty


SSH commands



CommandDescription
t 0

Auto logout timeout set to 0

debug allStart debugging
trace –h23 2010000&Start ISDN trace interface 2010000
isdnlogin 2222(number) tTo dial a number for test via ISDN
trace -?Overview of all Trace commands.
isdnlogin -?Overview of all ISDN trace commands
