You can use the web configurator to register all handsets on the DECT network and for a VoIP connection.
Use the add function of the Administration page to register single handsets or use the Registration Center to register groups of handsets in one process.
You can edit the settings for handsets, deactivate or delete them and make further settings e.g.,for using directories and network services.

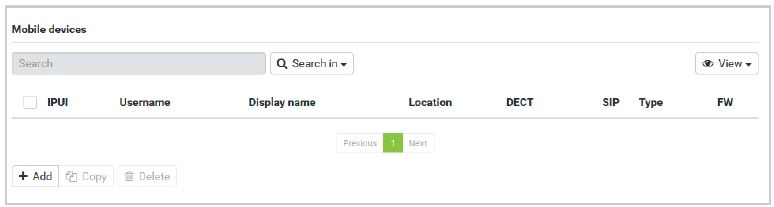

→ Settings → Mobile devices → Administration
The currently registered handsets and place holders for handsets that could be registered are listed on the page with the following information:
|IPUI||International Portable User Identity used in order to uniquely identify a handset within the DECT network.|
|Username||User name from the SIP account that is assigned to the handset, usually the phone number. The name is displayed on the handsets when they are in idle status.|
|Display name|| Display name from the SIP account that is assigned to the handset. The display name indicates the originator of the request when the user initiates a call.|
|Location||Name of the DECT manager the handset belongs to.Currently, always local.|
DECT registration state of the handset:
ToReg: System ready to register a handset
NotReg: Registration not possible
InReg: Registration in progress
Registered: Handset is registered
Indicates, if the handset has a working VoIP connection.
A VoIP connection is registered for the handset and a connection has been established successfully.
There is no VoIP connection configured or it is not possible to establish a connection to the configured VoIP provider.
|Type||Model designation of the handset.|
|FW||Current firmware version of the handset.|
Adding a handset to the list
- Click on Add . . . the mobile devices data page is opened.
Copying handset data for another configuration
Deleting a handset from the list
Editing the data of a handset
- Click on next to the handset you want to edit and the mobile devices data page is opened.
The page allows you to register a handset with the DECT multicell network or to prepare the registration of numerous handsets via the Registration Center. You can assign a VoIP account, enable online directories, and make further settings for the handsets.
- Enter an IPUI, if you want to restrict the registration to a specific handset.
- Enter an authentication code manually or generate it via the Generate random PIN button.
- Enter all configuration data for the handset.
- Click on Register now.
The handset with the matching IPUI is now allowed to register. If no IPUI is defined all handsets within range can register.
The system stays in registration mode as long as it is defined via the Registration duration parameter on the Registration Center page. Default: 3 min.
On the handset
- Start the registration procedure as described in the appropriate documentation. When prompted, enter the PIN that has been entered or generated.
Registering a set of handsets
You can register a set of handsets without restarting the registration mode. Prepare registration for new mobile devices as follows:
- Enter the actual IPUI and maybe an individual PIN or use wildcards as IPUI (0_1, 0_2, 0_3 … ) and preferably the same PIN for all handsets.
- Set the RegStatus of the handsets to To register.
- Open the registration window for a desired time and register all handsets without further Web UI interaction via the Registration Center.

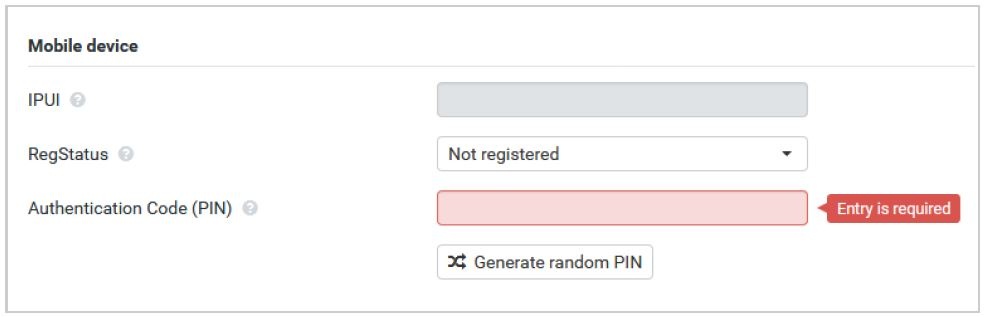

(International Portable User Identity) Unique identifier of a handset within the DECT network. If you edit an existing handset registration entry, the IPUI is shown and cannot be changed.
For a new entry:
If the field is empty, any handset will be allowed to register.
DECT registration status of the handset entry. The option menu allows you to change the status.
|Status||Meaning / possible action to change the status|
The system is ready to register a handset using these settings.
- Select Not registered to disable registration.
No registration possible.
- Select To register to allow a handset to register using these settings.
Registration in progress.
- Select Not registered to cancel the running registration process.
The handset is registered.
- Select To deregister to de-register the handset.
Authentication Code (PIN)
This PIN must be used on the handset to register with the DECT network.
- Enter a PIN in the text field. Value: min. 1, max. 4 digits
- Click on Generate random PIN a four-digit PIN is generated and shown in the text field.
- In the handset list click on next to the handset you want to de-register. The status is Registered.
- From the RegStatus option menu select To deregister. Click on Set and handset is deregistered
DECT de-registration successful: The handset is deleted from the Mobile devices list.
DECT de-registration not successful: The handset stays in the Mobile devices list with status "To deregister".
Settings for the handset
When registering a handset you can define important settings and assign functions at the same time.

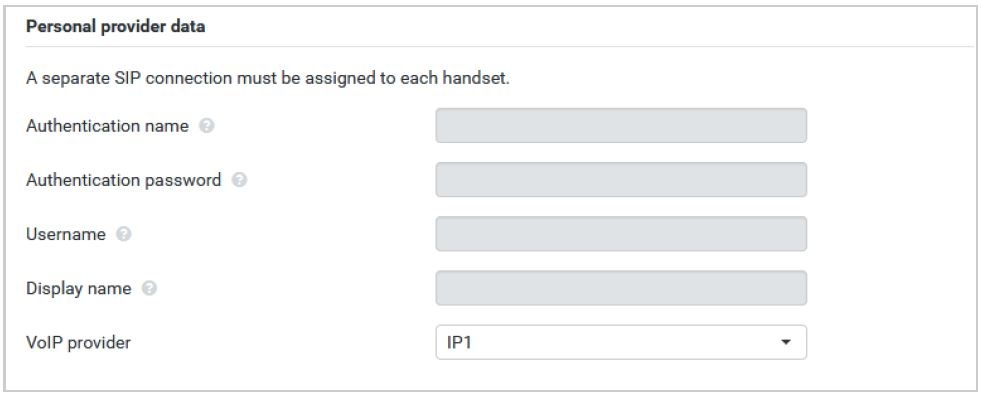

Personal provider data
Configure the VoIP account for the handset. If the handset is successfully registered, will be shown in the SIP column in the Mobile devices list.
The VoIP/PBX account must be set-up beforehand.
- Choose a configured VoIP PBX/provider from the option menu.The connection must be configured on the Provider or PBX profiles page.
- Enter the access data for the VoIP account in the relevant fields. These fields may vary depending on the PBX/provider profile.
The display name is used for presentation of the caller‘s name. In rare cases SIP networks check the display name for any local policy of the SIP network.
Usually, the display name is optional.

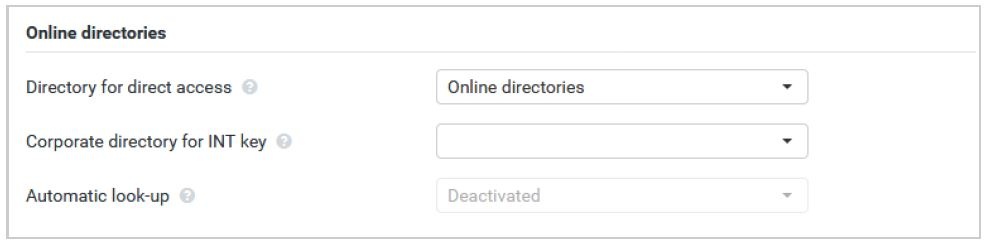

The user can call up various directories using the handset control or INT key.
Directory for direct access
The user can press and hold the directory key (bottom of the control key) to open either the list of online directories or the local directory of the handset.
- Choose which directory is called up with the directory key.
A list of online directories is opened via the directory key. The online directories must be set-up beforehand
|Local directory||The local directory is opened via the directory key.|
Corporate directory for INT key
If a corporate directory is available and configured the user can open it by pressing the INT key left on the handset’s control key).
Up to 10 directories in LDAP format can be provided by the phone system. The access to a corporate directory can be provided individually for specific handsets.

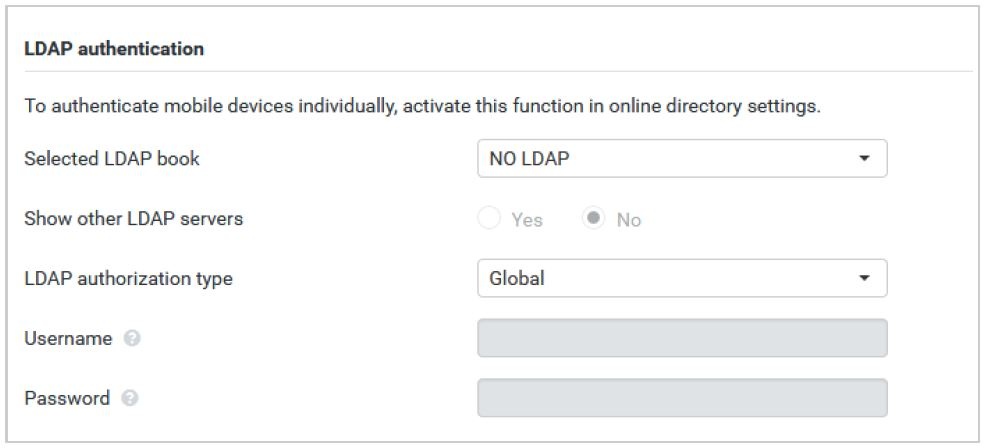

Selected LDAP book
- Select the LDAP directory to be provided on the handset from the option menu.
At least one LDAP directory must have been set-up.
Show other LDAP servers
- Select Yes if directories of other LDAP servers should be shown.
|Global||Credentials are set for all handsets during the LDAP directory set-up.|
Individual credentials are used.
- Enter Username and Password in the appropriate text fields.
The credentials for the user’s SIP account are used (Authentication name and

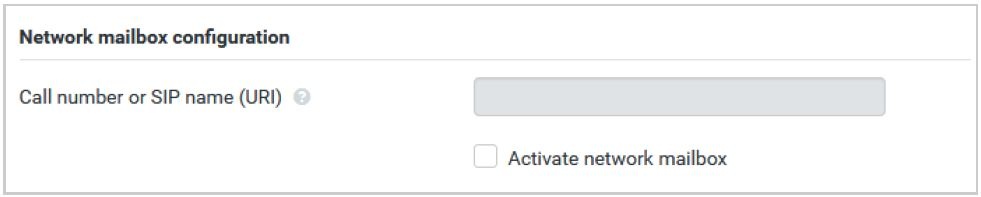

Network mailbox configuration
If a network mailbox is available for the VoIP account assigned to the handset, you have to activate this function.
- Enter the Call number or SIP name (URI) for the network mailbox.
- Activate the function via the check box.

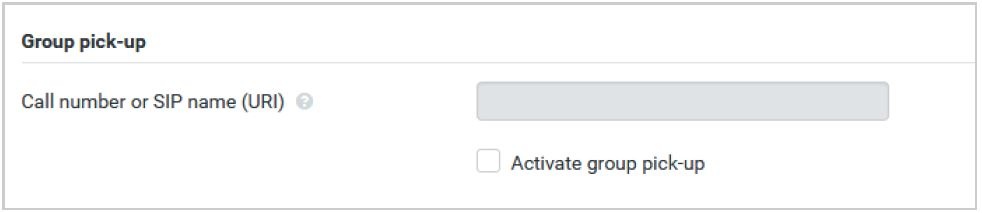

Group pick-up enables a user to accept a call for another subscriber, e.g., a pick-up group. Users belonging to the same call pick-up group can accept all calls for the group. A pick-up group must
be established during SIP account registration. The call number or the SIP URI of a pick-up group can be assigned to the mobile device.
- Enter the Call number or SIP name (URI) of the pick-up group.
- Activate the function via the check box.

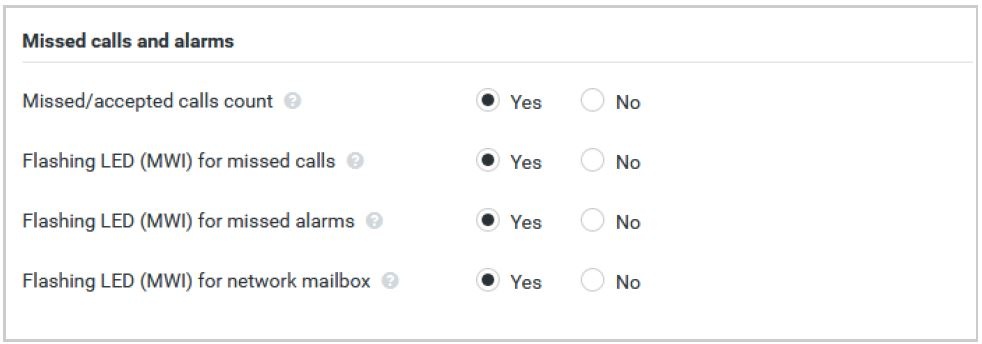

Missed calls and alarms
You can define if missed and accepted calls should be counted and if new messages of specific types should be indicated via the MWI LED on the handset’s message key.
Select Yes/No next to Missed/accepted calls count, to activate/deactivate the call counter for missed and accepted calls. The information is displayed in the handset’s call lists, missed
calls are also shown on the handset’s idle display.
Select Yes/No next to the message type (missed calls, missed alarms, new message on the network mailbox), to activate/deactivate the MWI LED for the message type. If Yes is selected, the message key will flash, if a new message of the selected types is received.

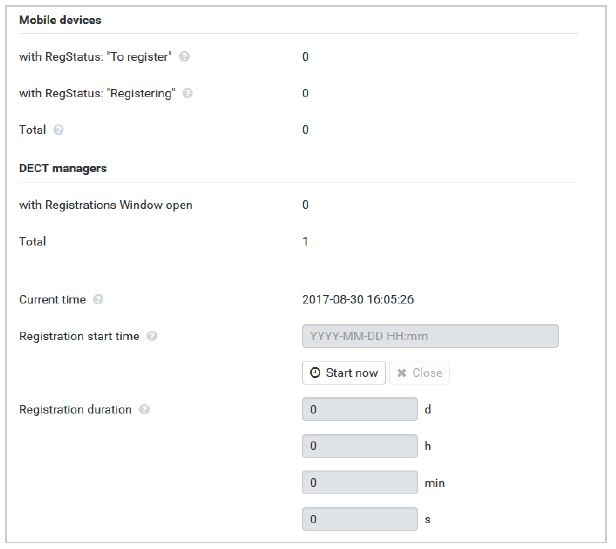

Handset Registration Centre
The registration centre allows you to register groups of handsets in one registration process. All handsets which are listed in the mobile devices list and have the registration status To register or Registering can be registered together.
→ Settings → Mobile devices → Registration Center
The page shows the number of mobile devices in registration status To register, Registering and the total number of entries in the mobile devices list, including those in registration status Registered
and Not registered.
The page also shows the DECT managers that currently are ready to register handsets. As this version only supports the use of one DECT manager, the information is not meaningful at present.
Registering handsets time-controlled
Shows the current system time and time settings:
In the Registration start time field enter the time when the next registration process should be started. Format: YYYY-MM-DD HH:mm.
Click on Start now and the DECT manager starts a registration process at the given time. If no time is set, the DECT manager will start registration at once.
Setting the registration duration:
Closing the window and resetting the timers:
- Click on Close and the registration window is closed, the time settings are reset.
When the first handset tries to register, the base closes the registration window and finalises the registration within a very few seconds. During this time any second handset registration attempt would be rejected. When the first handset is fully registered the base re-opens the registration window as long as defined with the Registration start time and Registration duration parameters.
If all handsets try to register in parallel, a lot of them will enter the base one by one and so will be successfully registered, but others might enter while another registration is not yet completed and so they will be rejected. Single handsets that are rejected have to be registered by a new registration procedure or manually.
