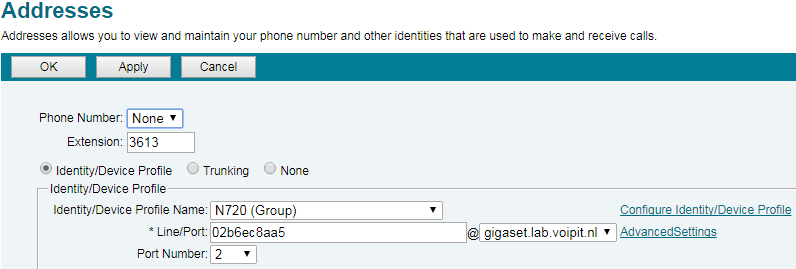

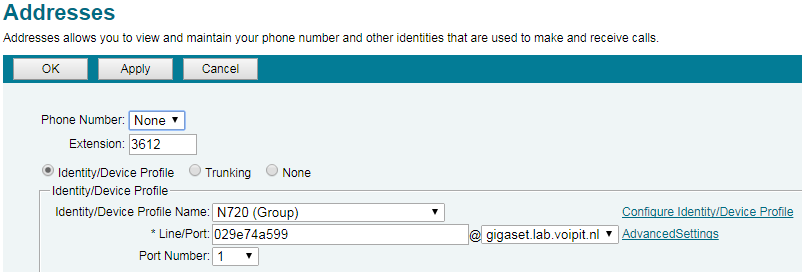

IntroductionIn this article I will explain how to use IPUI provisioning for N870 behind Broadsoft. Challenge: Broadsoft has no IPUI field. Broadsoft Line/Port numberSuggestion is to use the Broadsoft Line/Port field. This can be found at every user under Addresses. In the above example, you can see that this user is using position 1 of the 250 in the N870 and is using the handset with IPUI number "029e74a599" The second user is using position 2 and the handset with IPUI number "02b6ec8aa5" Broadsoft placeholderThe Broadsoft placeholder for the Line/Port field is: User | Placeholder |
---|
1 | %BWLINEPORT-1% | 2 | %BWLINEPORT-2% | .. x | %BWLINEPORT-x% |
<?xml version="1.0" encoding="UTF-8"?> <gigaset> <provisioning version="1.1" productID="e2"> <nvm> <!-- Handset 1 --> <oper name="add_bs"> <param name="id" value="%BWLINEPORT-1%" /> </oper> <param name="SipAccount.%BWLINEPORT-1%.AuthName" value="%BWAUTHUSER-1%" /> <param name="SipAccount.%BWLINEPORT-1%.AuthPassword" value="%BWAUTHPASSWORD-1%" /> <param name="SipAccount.%BWLINEPORT-1%.UserName" value="%BWLINEPORT-1%"" /> <param name="SipAccount.%BWLINEPORT-1%.DisplayName" value="%BWNAME-1%" /> <param name="SipAccount.%BWLINEPORT-1%.ProviderId" value="0" /> <param name="hs.%BWLINEPORT-1%.DirectAccessDir" value="0" />
</nvm> </provisioning> </gigaset> |
|
