The Wantec IP  station is supported from Gigaset v5.2 on. Operating in a version with video module is possible. The device is configured manually.

Variant EntryCom IP Vario 3 Keys

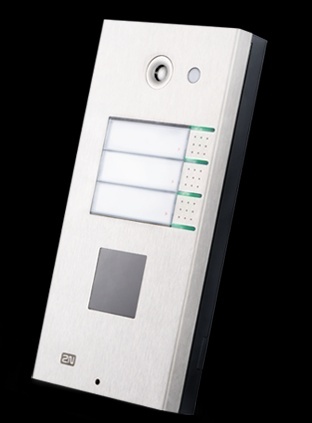

Variant DoorEntry IP Wantec

Product variants

The 2N EntryCom IP is being marketed in several countries as 2N 2N Helios IP or IP EntryCom. It is technically identical to devices. Furthermore, there is the range of IP Door Entry Wantec company, which is characterized by modified housing. These devices are technically identical and can be configured to meet these guidelines.

 Conceptual and preparation of the Gigaset PBX


http:// <IP-address EntryCom IP> / enu/camera320x240.jpg









Configuration 2N EntryCom IP

When used with the Gigaset PBX EntryCom IP must be operated with a fixed IP address - either by a fixed configuration for the device or via static leases in DHCP server.

Configuration step by step

Basic Settings > Phone book

The settings of the phone book within the EntryCom defines the destination numbers within the system to be called if such the call button is pressed. There are various settings available here. Below is a simple Standardzenario skiziert.

Normally, the address book entries 1 to 54 are each assigned to a call button at the EntryCom. Unfortunately it is not intuitively obvious which button is assigned which address book entry. Please read the manufacturer's documentation here!

In the example with the IP Door Entry Wantec the only bell of the instrument to the contact 9 is assigned. When you press the call button, the number is called 199.


Basic Settings > Switch 1

The settings of the Switch 1 and Switch 2 enables a switching function in the EntryCom DTMF code to activate.

Please select the settings in the "switch settings" to suit your requirements. The code stored in the DTMF code must be added to a final to Gigaset *. The code used here in 5678 is deposited as 5678 *.


Beispieldaten zur Konfiguration Switch 1

Advanced Settings > Date and Time

Advanced Settings > SIP Settings

Advanced Settings > Audio Codecs

Advanced Settings > Video Codecs

The video codec used settings for future use with SIP video phones.

Advanced Settings > Streaming

The setting Anonymous access is important so that the Gigaset PBX may tap a picture of the camera!

Advanced Settings > Miscellaneous

The values for ring time limit and define call time limit, as long as there remains a call from the station in the call setup and how long the call made after acceptance remains.
