Description

Defines the RGB decimal color used for softkey texts

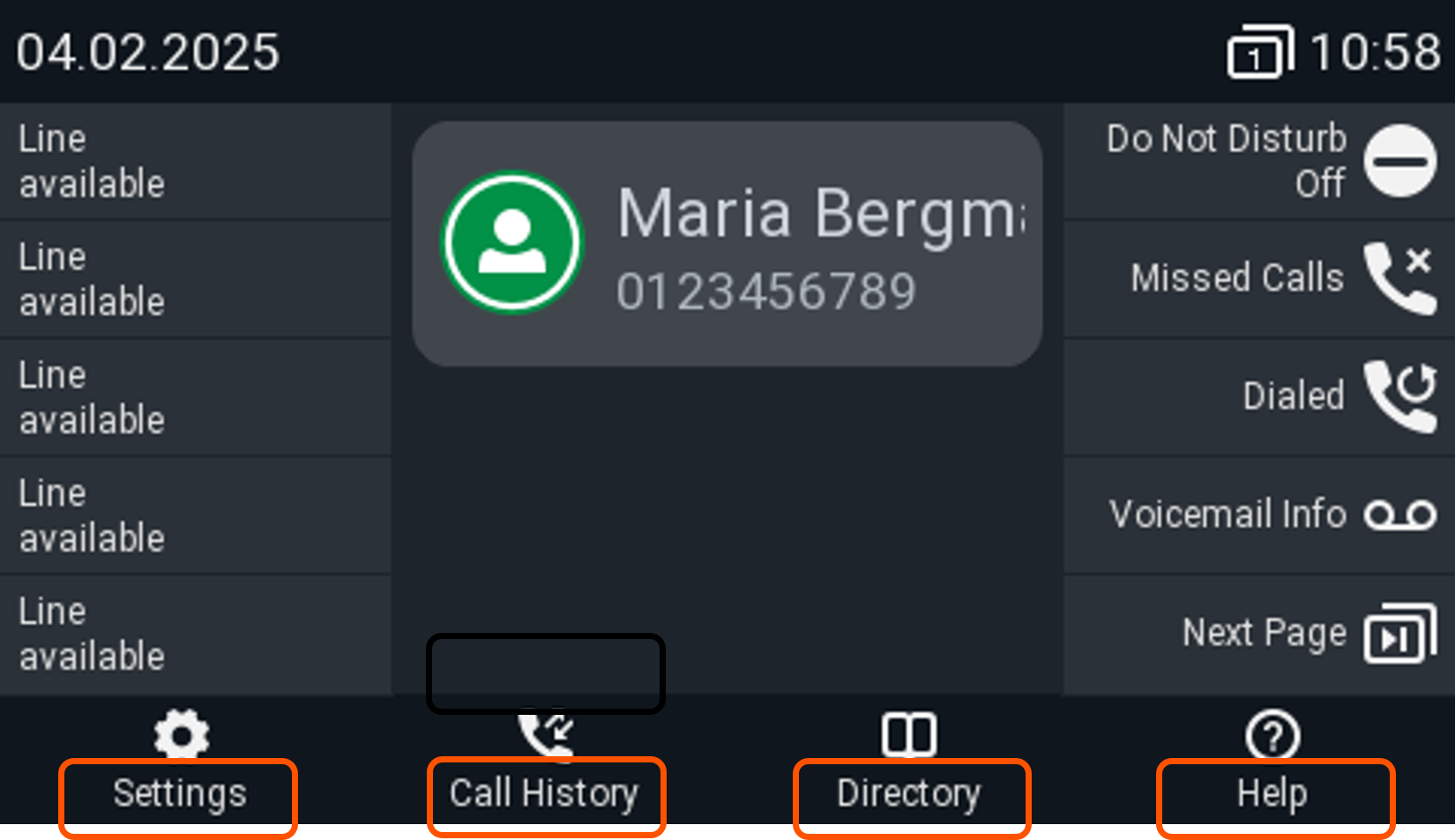

P850 example

Web User Interface

Setup - Preferences - Appearance - Interface Colors - Fkey Label Color

Phone User Interface

N.A.


Auto-provisioning

ParameterValid valueDefault
<fkey_label_color perm="PERMISSIONFLAGS">VALIDVALUE</fkey_label_color>

<RED> <GREEN> <BLUE> <Transparency (optional)>

A group of 3 numbers, each >=0 and <=255.

First number is the RED value, followed by GREEN, BLUE and optional alpha/transparency (alpha will default to 255 if it is not set)

224 224 224 255
