Description

Defines the RGB decimal color used for subtexts.

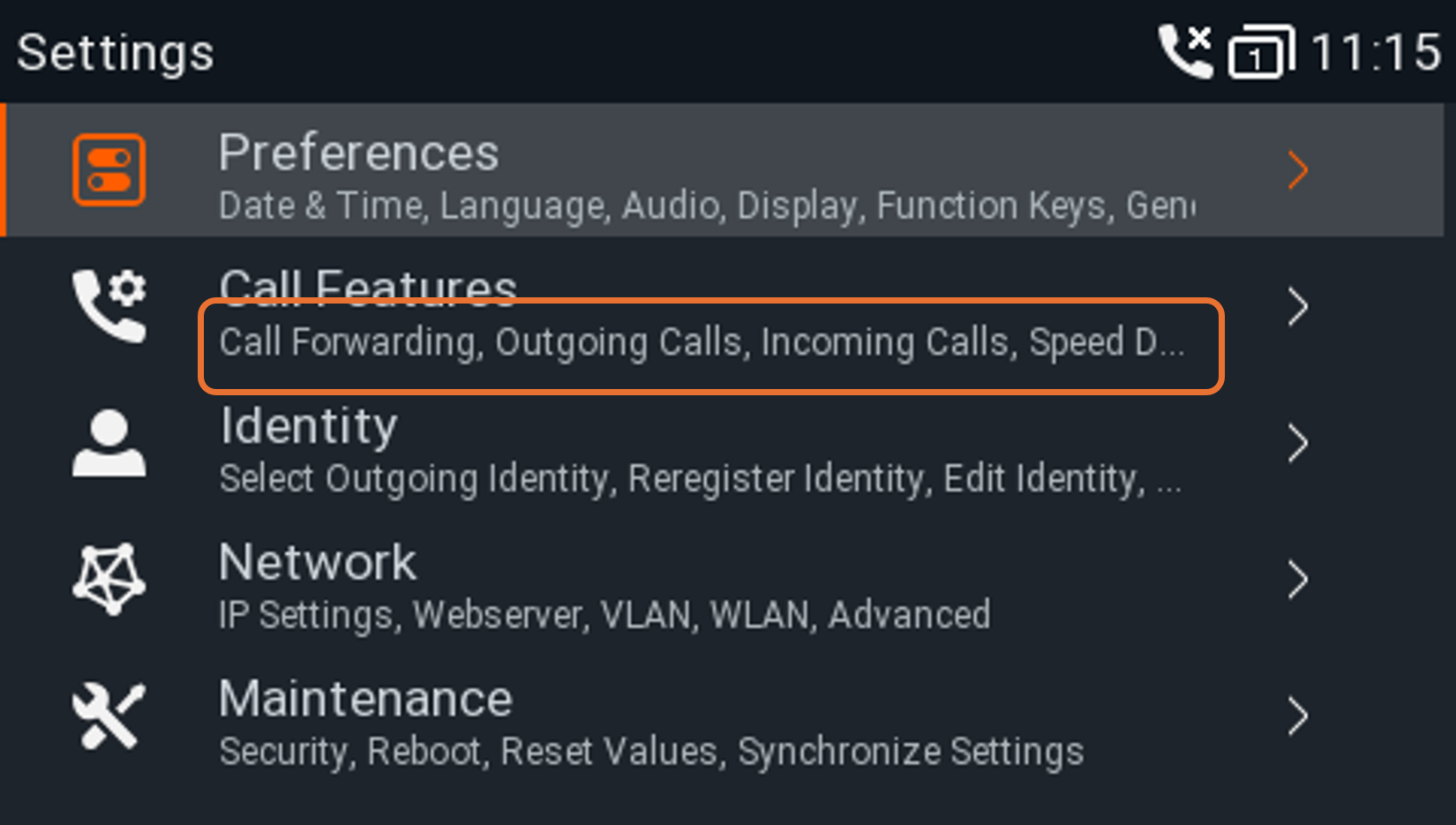

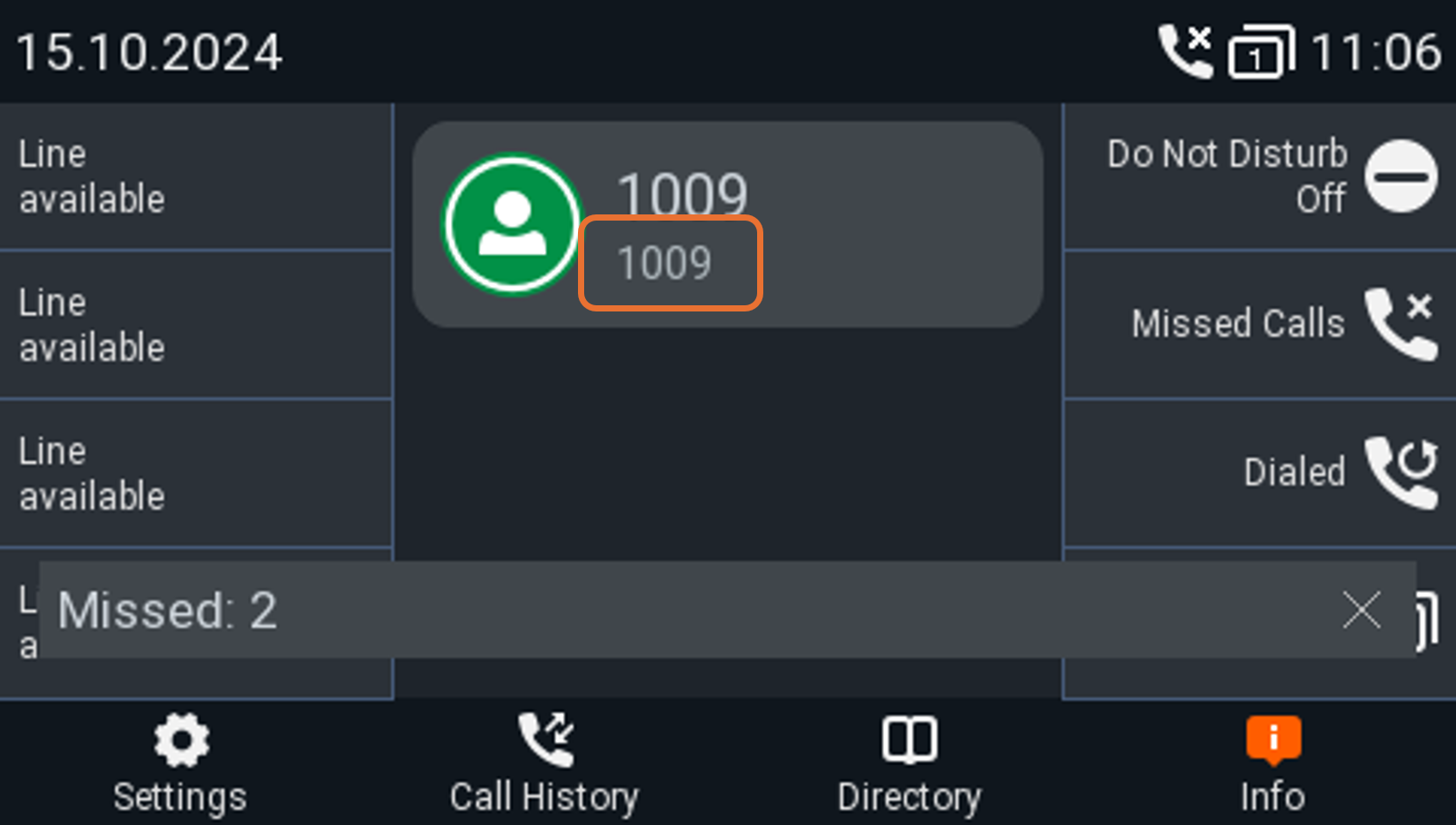

See the picture's regarding the device interface subtext positions.

Web User Interface

Setup - Preferences - Appearance - Subtext Color


Phone User Interface

N.A.


Auto-provisioning

ParameterDescription
<subtext_color perm="PERMISSIONFLAGS">VALIDVALUE</subtext_color>

<RED> <GREEN> <BLUE> <Transparency (optional)>

A group of 3 numbers, each >=0 and <=255.

First number is the RED value, followed by GREEN, BLUE and optional alpha/transparency (alpha will default to 255 if it is not set)
