Description

If enabled, the SIP server manages Call Forwarding No Reply (CFNR) for this SIP account (identity), i.e. the target number and timeout is set via the management console of the SIP server. The same way one can then activate/deactivate the feature.

The UI will show the current setup if the server synchronizes it's values with those on the phone(state, target and time). This setting does not specify how the server changes the redirection values nor how the phone updates them (it may be done via TR69, DFKS or starcodes).

Web User Interface

Identity → Features (tab) → Server Managed (section): Call Forwarding No Reply (CFNR)



Phone User Interface

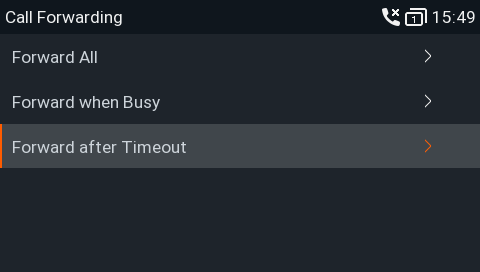

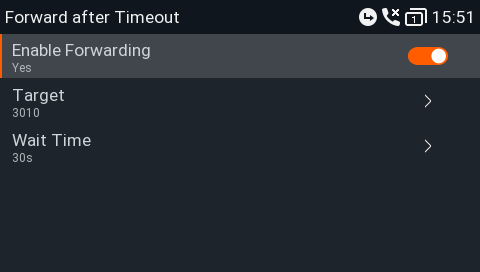

press Settings - Call Features - Call Forwarding - Forward after Timeout

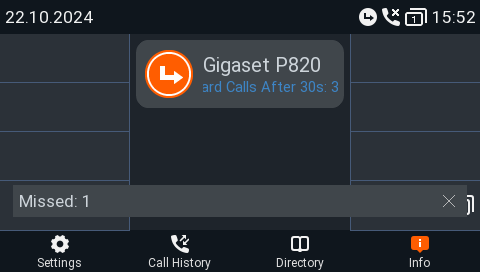

Example: Call Forwarding No Answer - On

Cisco Broadworks

In the Broadworks web-interface you have the setting: User →Incoming Calls → Call Forwarding No Answer



Auto-provisioning

ParameterDescription
<using_server_managed_fwd_time idx="1" perm="">on</using_server_managed_fwd_time>
  • on
  • off
