An Gigaset repeater can be used with the N610, for now unencrypted is supported

Repeater functionality:

  • Up to 6 repeaters in star arrangement
  • Connection is unencrypted
  • 2 narrowband calls in extended DECT range
  • Activation via provisioning

N670 and N870 do not support repeaters, for the N670/N870 (mini) multi-cell is available.

(warning) DO NOT apply following provisioning file to any N670/N870/N870E.

Following provisioning file does apply RPN=1 to all base stations of a single cell system, so to the one and only local base.

Wildcard provisioning does not automatically synchronize settings for all 'ConfirmedBaseStations'!

Reboot is needed after successful provisioning to get this synchronized.


<?xml version="1.0" encoding="UTF-8"?>
<provisioning version="1.1" productID="e2">
    <nvm>

		<!-- ATTENTION: DO NOT apply this provisioning xml to N670/N870 system!!! It will break your N670/N870 system-->

		<param name="dm.local.LocalBaseRpn" value="1"/>

    	<!-- Wildcard provisioning is not immediately synchronized to table of ConfirmedBaseStations!!! -->
    	<!-- So please replace wildcard '@' by mac address of your N610, or reboot the base after successful provisioning. -->
    	<param name="ConfirmedBaseStations.@.ucRpnIndex" value="0x1" />

		<param name="DmGlobal.0.DECTCipherDisable" value="1" />
    	<param name="DmGlobal.0.DECTEnhancedEncryption" value="0" />
    	<param name="DmGlobal.0.DECTCfSettings" value="0x00" />
    	<param name="DmGlobal.0.DECTBlindslots" value="0x0aaa" />
    	<param name="DmGlobal.0.WidebandEnabled" value="0" />
        <param name="DmGlobal.0.DECTDSAA2" value="0" />
   </nvm>
</provisioning>

Examples of provisioning files


DECT Settings → DECT Encryption, early Encryption and re-keying is disabled to support transparent repeater operation.

Telephony → Audio → Wideband Support must stay decativated to support transparent repeater operation:

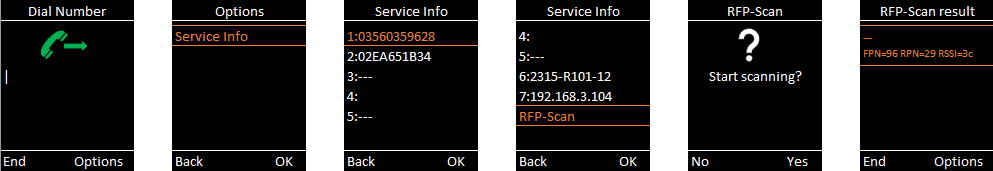

With handset you could check the RPN in the RFP-Scan procedure


If repeater support is deactivated RPN ends with '0' or '8'.

If repeater support is activated RPN ends with '1' or '9'.

Repeater might show up in RFP-scanning with RPN ending with '2..7' or 'a..f'.

When the above is done, the next step is to connect the repeater.

  • Open the web-interface of the N610.
  • Go to SETTINGS - Mobile devices - Registration Centre and click on Start now
  • Set the repeater in registration mode FAQ Repeater - Registration
  • All is successful when on the repeater, the left LED is constantly green
