Description

If enabled, the SIP server manages Call Forwarding Busy (CFB) for this SIP account (identity), i.e. the target number is set via the management console of the SIP server. The same way one can then activate/deactivate the feature.

The UI will show the current setup if the server synchronizes it's values with those on the phone (state and target). This setting does not specify how the server changes the redirection values nor how the phone updates them. (it may be done via TR69, DFKS or starcodes).

Web User Interface

Identity → Features (Tab) → Server Managed (Section): Call Forwarding Busy (CFB)



Phone User Interface

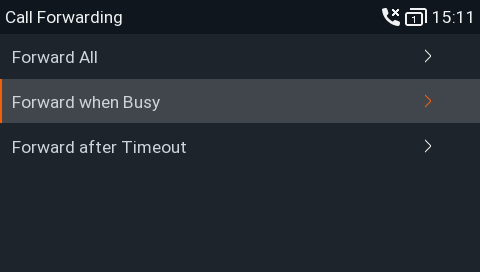

press Settings - Call Features - Call Forwarding - Forward when Busy

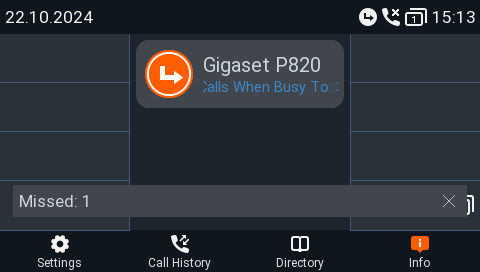

Example: Call forwarding busy - On

Cisco Broadworks

In the Broadworks web-interface you have the setting: User →Incoming Calls → Call Forwarding Busy

If you enable/disable this in the Broadworks web-interface, you will see the change on the phone.

Auto-provisioning

ParameterDescription
<using_server_managed_fwd_busy idx="1" perm="">on</using_server_managed_fwd_busy>
  • on
  • off
