Here we describe how to add a DECT handset using GRAPE.

Adding handsets via fixed numbering is supported.

In September 2025 we will add more functionality to manage DECT handsets.

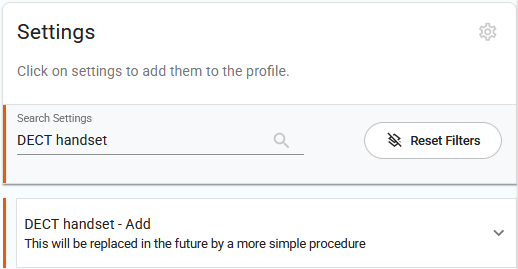

The parameters can be found under the Group DECT handset - Add


Handset delete not provisioned

This parameter will be placed on top of the provisioning file, working with always sending all DECT handsets. If the Handset is not in the provisioning file, it will be deleted by the DECT system.

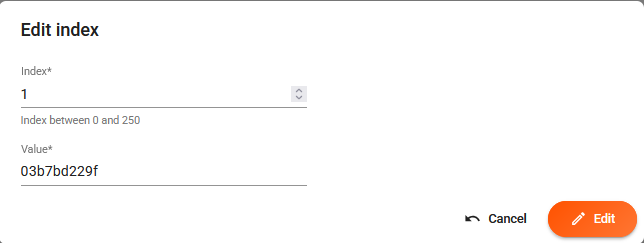

Handset add with IPUI

Via fixed numbering, a handset is added.

Index: 1- 250: Handset 1-250

Value: Handset IPUI

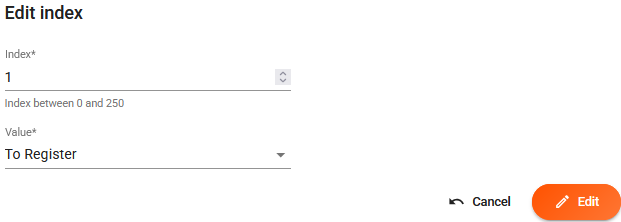

Handset registration status

Index: 1- 250: Handset 1-250

Value:

  • Not Registered
  • To DeRegister
  • To Register (Preferred when using handset IPUI)

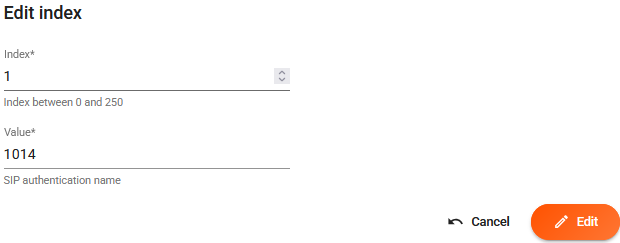

Handset Authentication name

Index: 1- 250: Handset 1-250

Value: SIP authentication name

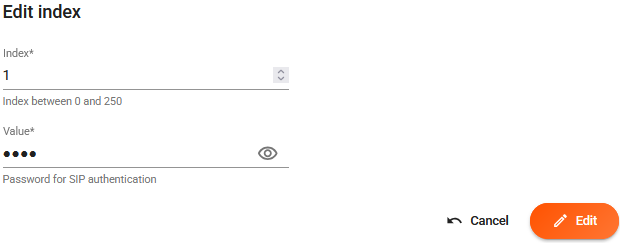

Handset Authentication password

Index: 1- 250: Handset 1-250

Value: SIP authentication password

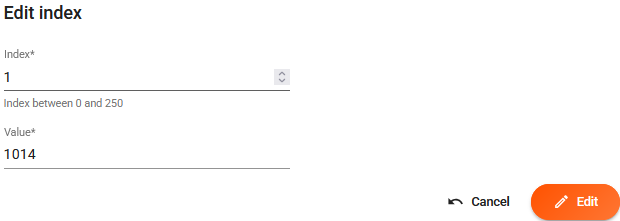

Index: 1- 250: Handset 1-250

Value: SIP username

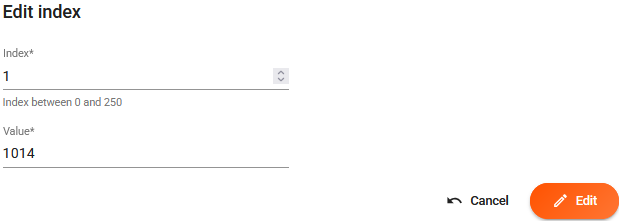

Index: 1- 250: Handset 1-250

Value: Handset display name

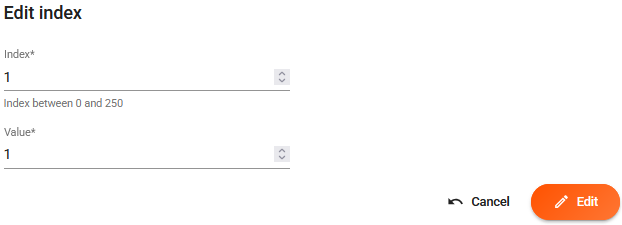

Handset provider ID

Index: 1- 250: Handset 1-250

Value:

  • 0 = Provider 1
  • 1 = Provider 2
  • ...


See under the Group DECT handset - Add for the other parameters.
